COMBINATION OPEN & BOX SPANNERS

DIN 3113A - ISO 3318 - ISO 1085
Chrome Vanadium Steel

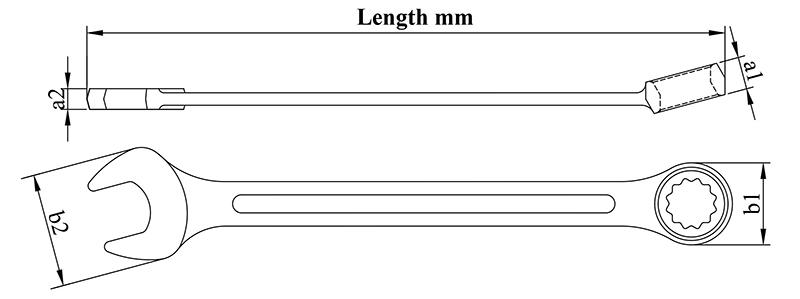

SIZE (MM) LENGTH (MM) b1 b2 a1 a2 WEIGHT (GMS)
6 100 10.5 15 5.2 3.2 15
7 110 12 17 6 3.2 18
8 120 13.5 19 6 3.6 23
9 130 15 21 7.3 3.9 28
10 140 16.5 22 7.8 4.2 34
11 150 18 24.5 8.7 4.6 44
12 160 19.5 26.6 8.8 4.6 51
13 170 21 28.6 9.8 5.5 62
14 180 22.5 30.6 10.4 5.6 76
15 190 23 32.8 10.5 5.8 89
16 200 25.5 34.8 11.4 6.8 109
17 210 26 36.8 11.6 6.8 110
18 220 27.5 38 12.2 7.6 134
19 230 29 40 12.4 7.6 156
20 240 30.5 42 12.8 7.6 174
21 250 32.5 44 13 8.4 208
SIZE (MM) LENGTH (MM) b1 b2 a1 a2 WEIGHT (GMS)
22 260 34 46 13.4 8.6 224
23 270 35.5 48 13.7 8.6 243
24 280 36.5 49.5 13.8 10.2 304
25 290 38 50.5 14 10.2 308
26 300 40 53.4 14.6 10.2 342
27 310 40.5 55.5 15.5 11.2 387
28 320 42.5 57.5 15.5 11.2 430
29 330 42.5 58.5 15.5 11.2 435
30 340 44.5 60.5 16.8 11.8 465
32 360 47.5 64.5 17.5 12 548
36 384 51.5 75 17.5 12 780
Code Sets 6 7 8 9 10 11 12 13 14 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 32
0001 6 Pcs Set X X X X X X
0002 8 Pcs Set X X X X X X X X
0003 12 Pcs Set X X X X X X X X X X X X
0004 25 Pcs Set X X X X X X X X X X X X X X X X X X X X X X X X
0005 26 Pcs Set X X X X X X X X X X X X X X X X X X X X X X X X X
