DOUBLE ENDED OPEN JAW SPANNER

DIN 895 - ISO 3318
Carbon Steel / Chrome Vanadium Steel
Finish: Chrome Plated / Phosphated Black Finish

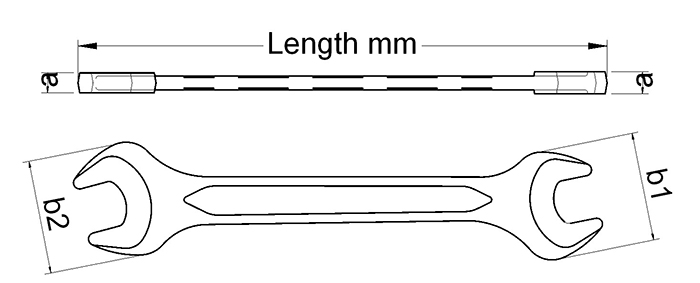

SIZE (MM) LENGTH (MM) b1 b2 a WEIGHT (GMS)
5.5x7 93 13 15 3 12
6x7 93 13 15 3 18
6x9 101 13 19 3.4 15
6x10 101 13 21 3.4 20
7x8 101 15 17 3.4 16
8x9 111 17 19 3.4 20
8x10 111 17 21 3.8 22
8x11 120 17 24 3.8 24
8x13 120 17 27 4.7 30
9x10 111 19 21 3.8 25
9x11 120 19 24 3.8 35
10x11 120 21 24 4.7 35
10x12 120 21 25 4.7 40
10x13 120 21 27 4.7 44
10x14 138 21 28.5 5.2 44
10x17 154 21 34.5 5.5 56
11x12 128 24 25 5.2 40
11x13 128 24 27 5.2 43
12x13 130 25 27 5.2 45
12x14 140 25 28.5 5.2 50
13x14 140 27 28.5 5.2 48
13x15 148 27 30.5 5.5 65
13x16 148 27 32.5 5.5 68
13x17 155 27 34.5 6 74
14x15 150 28.5 30.5 5.5 65
14x17 162 28.5 34.5 6 72
16x17 162 32.5 34.5 6.2 83
16x18 162 32.5 36.5 6.2 86
SIZE (MM) LENGTH (MM) b1 b2 a WEIGHT (GMS)
17x19 172 34.5 38.5 6.2 90
17x22 184 34.5 44 6.5 110
17x24 184 34.5 48 6.5 125
18x19 172 36.5 38.5 6.2 98
18x21 181 36.5 42 6.5 118
19x22 184 38.5 44 6.5 125
19x24 201 38.5 48 7.5 148
20x22 184 40 44 6.5 120
21x23 212 42 43 7.5 150
21x24 212 42 48 7.5 165
22x24 212 44 48 7.5 168
22x27 236 44 53 8 204
24x27 236 48 53 8.5 215
24x30 275 48 60 9.2 298
24x32 275 48 64 9.2 300
25x28 236 50 56 8.5 245
27x30 275 53 60 9.2 310
27x32 275 53 64 10.2 330
30x32 275 60 64 10.2 356
30x34 280 60 68 10.6 428
30x36 297 60 71 11.2 476
32x36 297 64 71 11.2 520
34x36 304 68 71 12 570
36x41 335 71 81 12.5 655
41x46 374 81 92 12.5 850
46x50 414 92 100 13 1130
50x55 453 100 110 13.5 1340
55x60 480 110 120 14.5 1900
