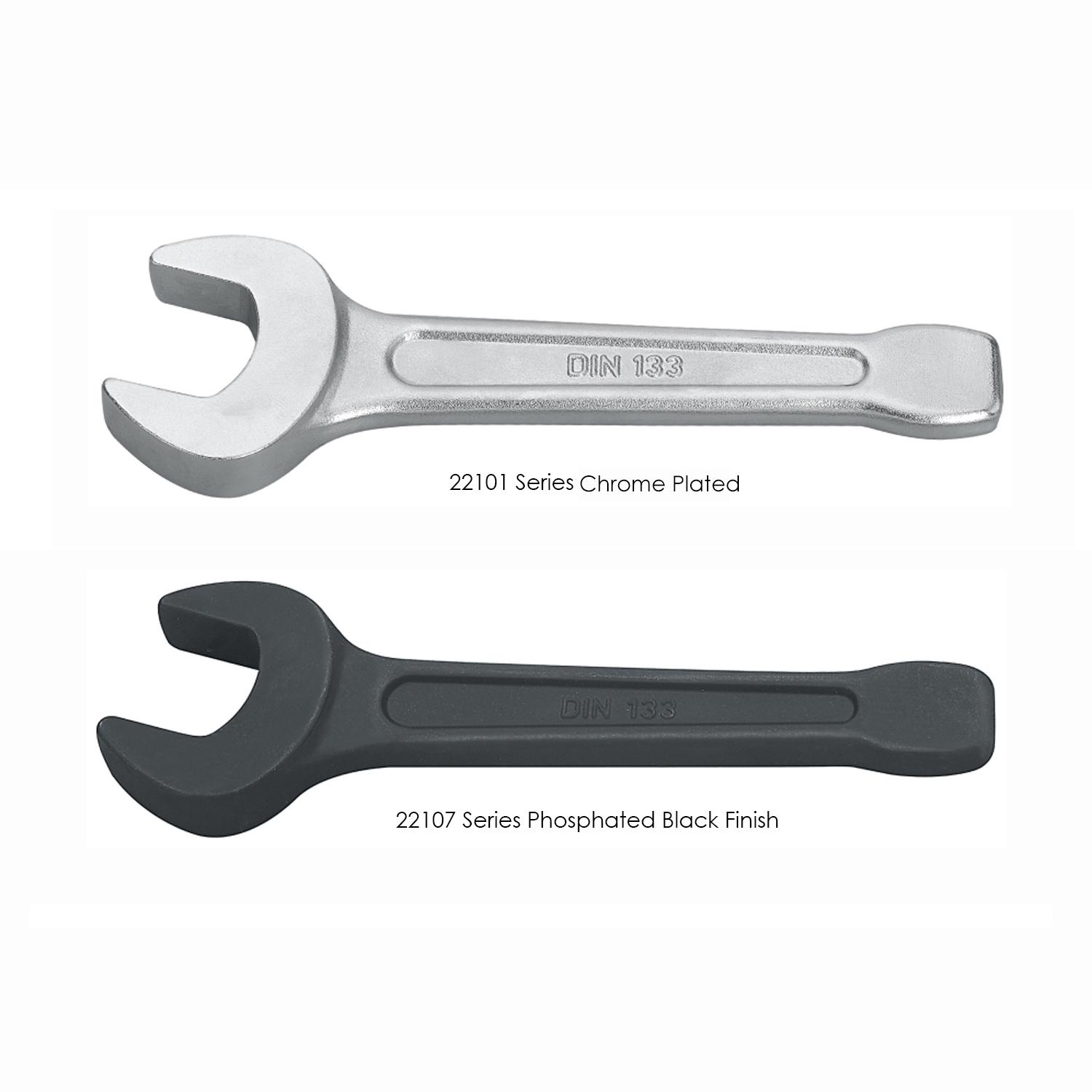

DIN 133
Chrome Vanadium Steel
Finish: Chrome Plated / Phosphated Black Finish

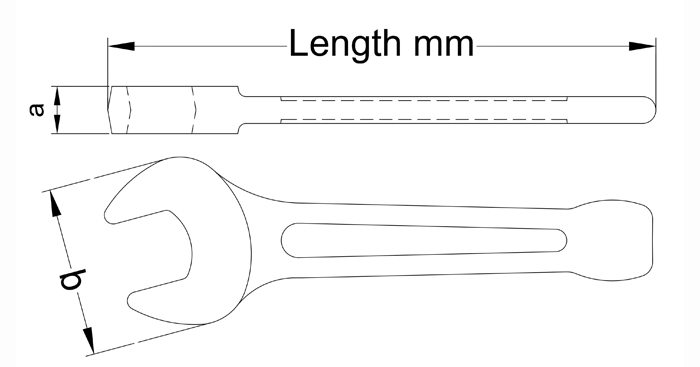

| SIZE (MM) | LENGTH (MM) | b | a | WEIGHT IN GMS. |
| 24 | 180 | 48.5 | 14.8 | 325 |
| 27 | 180 | 54.5 | 15.8 | 345 |
| 30 | 190 | 62 | 16.8 | 460 |
| 32 | 190 | 62 | 16.8 | 545 |
| 34 | 200 | 68 | 16.8 | 650 |
| 36 | 210 | 73.5 | 18.6 | 690 |
| 41 | 230 | 84 | 18.6 | 950 |
| 46 | 250 | 94 | 20.4 | 1235 |
| 50 | 270 | 104 | 20.4 | 1520 |
| 55 | 305 | 112 | 23.3 | 2140 |
| 60 | 315 | 121 | 23.2 | 2440 |
| 65 | 345 | 133 | 28 | 3165 |
| 70 | 370 | 146 | 29.8 | 4100 |
| 75 | 382 | 153.5 | 29.8 | 4280 |
| 80 | 400 | 164.5 | 32.5 | 5150 |
| 85 | 400 | 164.5 | 32.5 | 5100 |
| 90 | 450 | 187 | 37.6 | 7800 |
| 95 | 450 | 187 | 37.6 | 7850 |
| 100 | 490 | 218 | 45 | 11500 |
| 105 | 490 | 218 | 45 | 12500 |
| 110 | 500 | 226 | 47 | 13400 |
| 115 | 500 | 238 | 52 | 14000 |
