SINGLE ENDED OPEN JAW SPANNER

DIN 894 - ISO 3318
Carbon Steel / Chrome Vanadium Steel

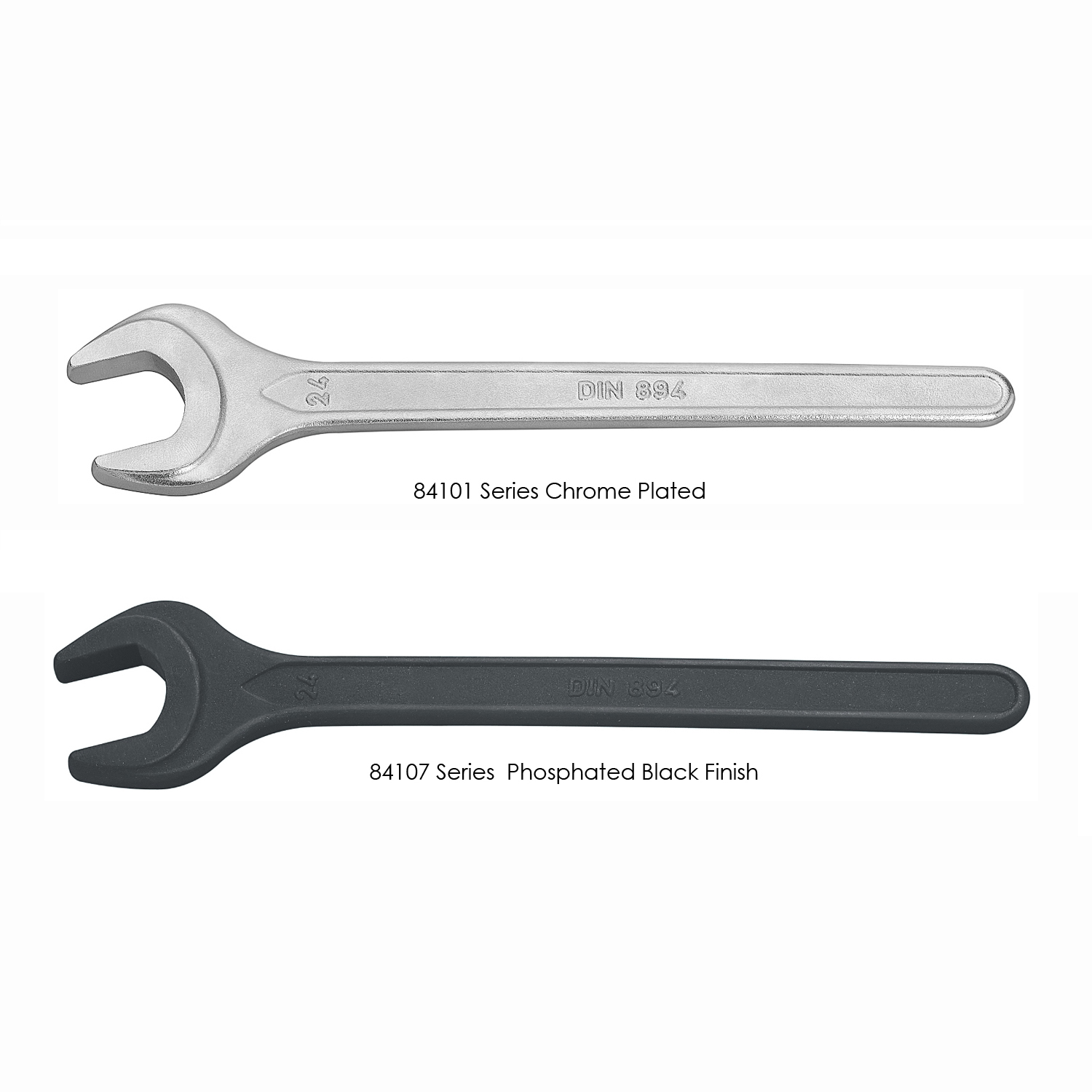

Finish: Chrome Plated / Phosphated Black Finish

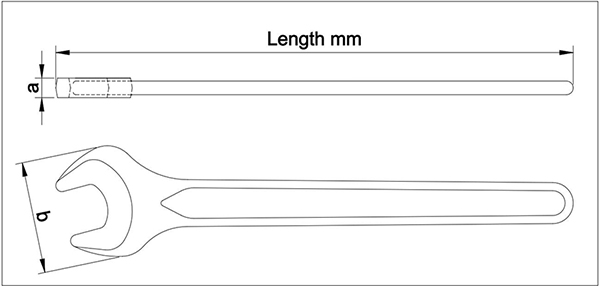

SIZE (MM) LENGTH (MM) b a WEIGHT IN GMS.
6 72 13.5 3 8
7 78 15 3 9
8 93 17 3.4 13
9 98 19 3.8 16
10 104 21 4.2 22
11 110 23 4.6 24
12 126 25 4.6 32
13 130 27 4.9 38
14 135 29 5 48
15 145 31 5 55
16 157 33 5.2 60
17 157 35 5.4 66
18 162 37 5.5 74
19 171 38.5 6.2 88
20 171 40 6.2 96
21 182 42.5 6 105
SIZE (MM) LENGTH (MM) b a WEIGHT IN GMS.
22 192 44 7.2 115
24 212 48 7.8 143
25 217 50 8.2 162
27 236 53 8.6 200
30 260 60 9.4 260
32 275 63.5 10.3 320
34 285 68 10.4 338
36 300 71 11.4 474
38 300 75 11 468
41 339 80 12 620
46 374 89 12.8 775
50 404 99 13 960
55 443 110 15 1305
60 477 119 15.5 1525
65 512 129 16 1950
70 555 138 16.5 2286
75 585 148 17.5 2638
80 635 156 18.2 3700
85 680 171 19 4080
90 742 190 21.5 5450
95 742 193 21.5 5670
100 850 195 25 6125
105 1000 217 29 8905
110 1000 217 29 8654
