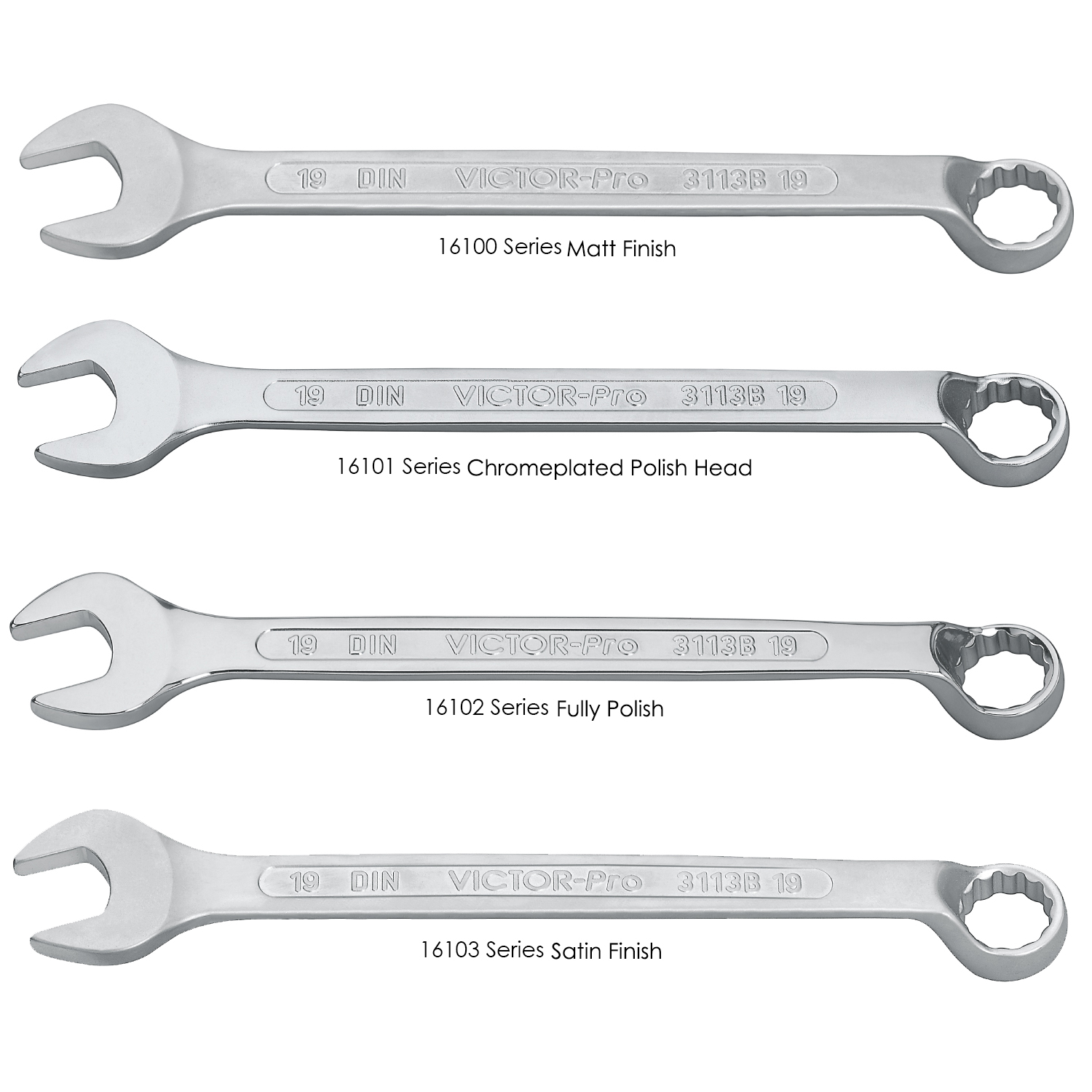

COMBINATION OPEN & BOX END SPANNER

Cold Stamped European Pattern
Deep Offset Ring Offset at 10°
DIN 3113B - ISO 3318 - ISO 1085
Chrome Vanadium Steel

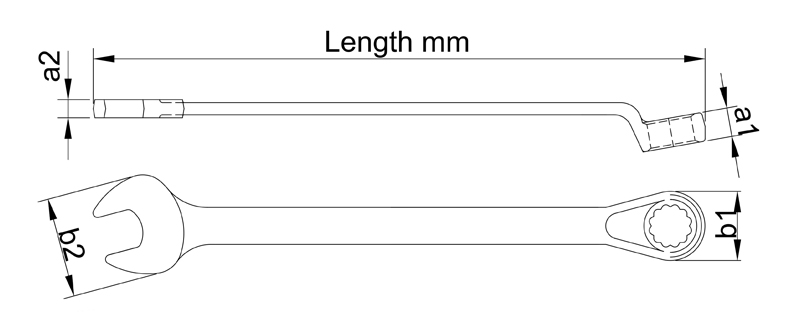

SIZE (MM) LENGTH (MM) b1 b2 a1 a2 WEIGHT (GMS)
6 100 10 16 5.3 3.4 16
7 113 11 17 6.1 3.4 21
8 124 12.5 19 6.3 3.8 28
9 136 14 21 7 4 34
10 148 15.5 235 7.8 4.2 40
11 157 17 26.5 8.8 4.6 50
12 172 18.5 27.8 8.8 4.7 60
13 181 20 29 9.5 5.5 80
14 194 21.5 30 10.5 5.5 86
15 210 22.5 32 10.5 5.9 110
16 218 23.5 33.8 11.3 6.8 126
17 232 25.5 36.5 11.3 6.8 154
18 243 27 30.5 11.3 6.8 165
19 258 29 41 12.2 7.6 202
20 268 30.5 42 12.6 7.6 215
21 278 31.5 44 13 8.5 250
SIZE (MM) LENGTH (MM) b1 b2 a1 a2 WEIGHT (GMS)
22 286 33.5 46 13 8.5 276
23 304 35.5 46.8 13.5 8.5 310
24 316 36.5 49.5 13.8 10 351
25 327 38.5 51.5 14 10.2 360
26 339 39.5 52.5 15.4 10.5 447
27 352 40.5 56 15.4 10.5 460
28 366 42.5 57 15.5 10.5 520
29 366 43.5 57.5 15.5 10.5 525
30 390 43.5 59. 17 11 600
32 412 46.5 63.5 17.8 11.2 700
34 465 49.5 72 19 11.6 980
36 465 52.5 73 20.4 12.2 1080
41 465 60.5 82 21 13 1320
46 511 66.5 90 22.7 15.0 1674
50 558 72.8 97.5 26.5 17.5 2540

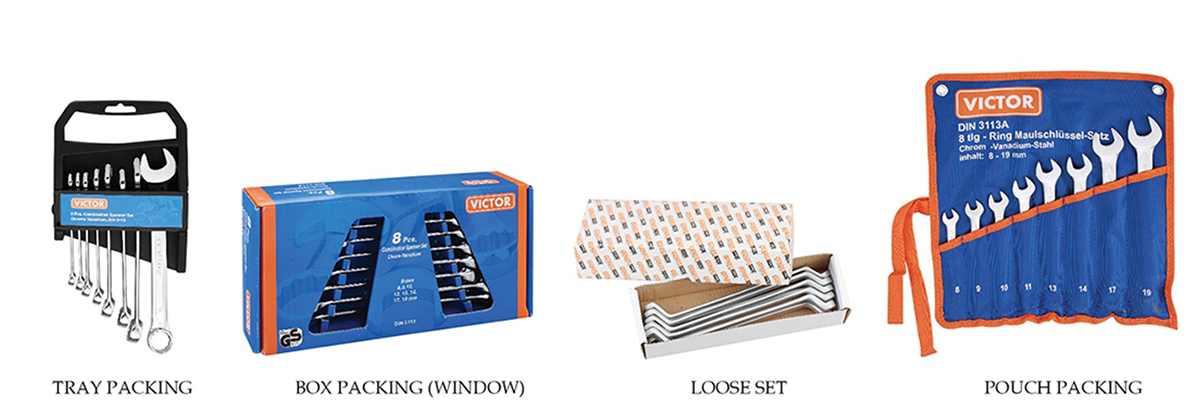

Code Sets 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 21x23 24x27 24x26 25x28 27x32 30x32
0001 6 Pcs Set X X X X X X
0002 8 Pcs Set X X X X X X X X
0003 12 Pcs Set X X X X X X X X X X X X
0004 25 Pcs Set X X X X X X X X X X X X
0005 26 Pcs Set X X X X X X X X X X X X X X
