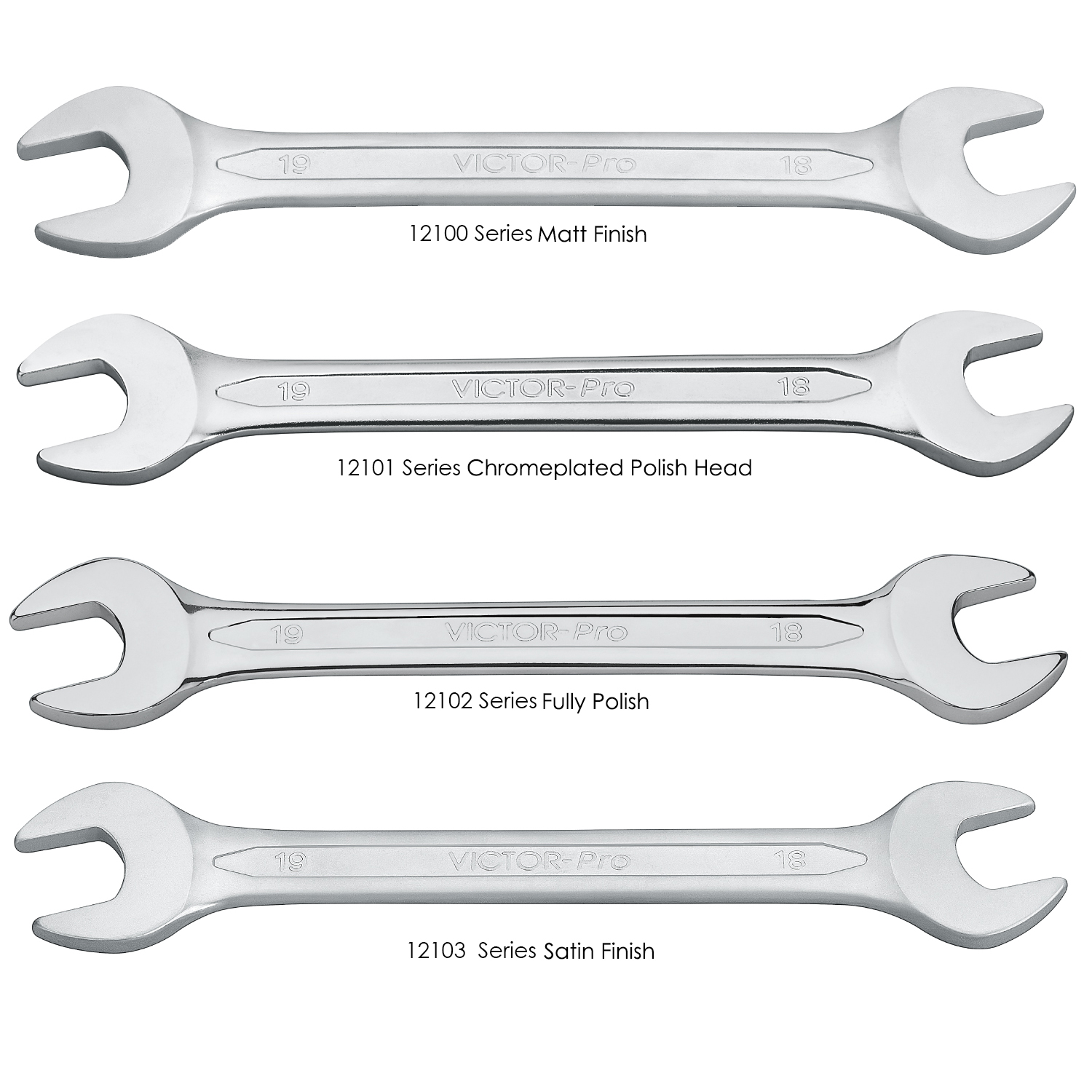

DOUBLE ENDED OPEN JAW SPANNER
Cold Stamped European Pattern
DIN 3110 - ISO 3318 - ISO 1085
Chrome Vanadium Steel

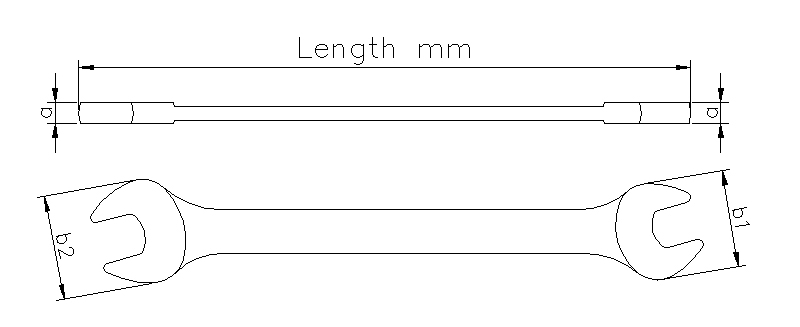

SIZE (MM) |
LENGTH (MM) |
b1 |
b2 |
a | WEIGHT (GMS) |
6x7 |
123 |
16.5 |
17.5 |
3.3 |
18 |
7x8 |
132 |
17.5 |
19 |
3.5 |
24 |
7x9 |
142 |
17.5 |
21 |
3.5 |
34 |
8x9 |
142 |
19 |
21 |
3.5 |
35 |
8x10 |
142 |
19 |
23.5 |
4 |
37 |
9x10 |
158 |
21 |
23.5 |
4.4 |
48 |
9x11 |
158 |
21 |
26 |
4.4 |
50 |
10x11 |
158 |
23.5 |
26 |
4.4 |
52 |
10x12 |
158 |
23.5 |
28 |
4.4 |
55 |
10x13 |
171 |
23.5 |
29 |
4.8 |
66 |
11x13 |
171 |
26 |
29 |
4.8 |
68 |
11x14 |
171 |
26 |
30.5 |
4.8 |
69 |
12x13 |
171 |
28 |
29 |
4.8 |
70 |
12x14 |
175 |
27.5 |
30.5 |
4.8 |
74 |
13x14 |
175 |
29 |
30.5 |
5.2 |
76 |
13x15 |
187 |
29 |
32 |
5.2 |
88 |
13x17 |
201* |
29 |
37.5 |
5.7 |
115 |
14x15 |
187 |
30.5 |
33 |
5.4 |
92 |
14x17 |
201* |
30.5 |
37.5 |
5.7 |
120 |
16x17 |
201 |
34.5 |
37.5 |
6 |
132 |
16x18 |
201 |
34.5 |
38.5 |
6 |
134 |
17x19 |
220 |
37.5 |
41.5 |
6.2 |
145 |
17x22 |
238 |
37.5 |
46 |
7 |
188 |
18x19 |
220 |
38.5 |
41.5 |
6.7 |
155 |
SIZE (MM) |
LENGTH (MM) |
b1 |
b2 |
a | WEIGHT (GMS) |
18x21 |
237 |
38.5 |
43 |
7 |
200 |
19x21 |
237 |
41.5 |
43 |
7 |
210 |
19x22 |
237 |
41.5 |
46 |
7 |
215 |
19x24 |
241 |
41.5 |
49.5 |
8 |
234 |
20x22 |
238 |
43.5 |
46.5 |
7.2 |
220 |
21x23 |
248 |
43 |
49.5 |
7.2 |
226 |
22x24 |
248 |
46 |
51.5 |
8 |
253 |
22x27 |
265 |
46 |
56 |
8 |
265 |
23x26 |
265* |
47 |
52.5 |
8 |
310 |
24x26 |
265* |
51.5 |
52.5 |
8.2 |
340 |
24x27 |
265 |
51.5 |
58.5 |
8.2 |
345 |
24x30 |
279 |
51.5 |
61.5 |
8.7 |
425 |
25x28 |
279 |
53.5 |
59.5 |
8.2 |
360 |
27x30 |
300* |
56 |
61.5 |
8.7 |
454 |
27x32 |
300* |
56 |
66 |
8.7 |
460 |
30x32 |
300 |
51.5 |
66 |
9 |
540 |
30x34 |
300 |
61.5 |
68 |
9.2 |
480 |
30x36 |
310 |
60 |
71 |
9.2 |
506 |
32x36 |
310 |
66 |
71 |
9.2 |
596 |
34x36 |
330 |
69 |
71 |
11 |
790 |
34x41 |
355 |
71 |
78 |
11 |
870 |
41x46 |
419 |
78 |
85.5 |
13.6 |
1300 |
46x50 |
474 |
85.5 |
93.5 |
14.4 |
1680 |

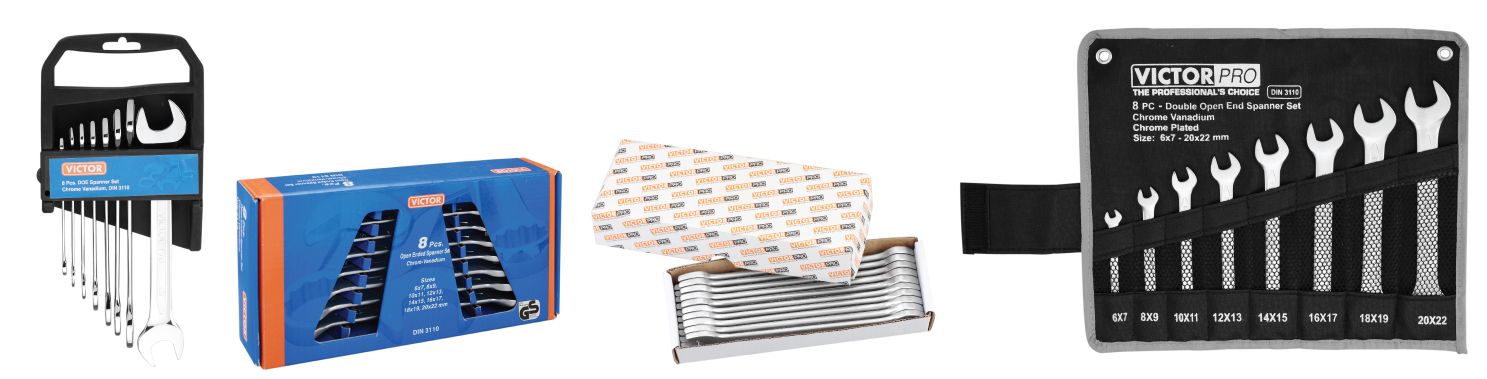

Code |
Sets |
6x7 |
8x9 |
10x11 |
12x13 |
14x15 |
16x17 |
18x19 |
20x22 |
21x23 |
24x27 |
24x26 |
25x28 |
27x32 |
30x32 |
0001 |
6 Pcs Set |
X |
X |
X |
X |
X |
X |
|
|
|
|
|
|
|
|
0002 |
8 Pcs Set |
X |
X |
X |
X |
X |
X |
X |
X |
|
|
|
|
|
|
0003 |
12 Pcs Set |
X |
X |
X |
X |
X |
X |
X |
X |
X |
X |
|
X |
|
X |
0004 |
12 Pcs Set |
X |
X |
X |
X |
X |
X |
X |
X |
X |
X |
X |
|
X |
|
