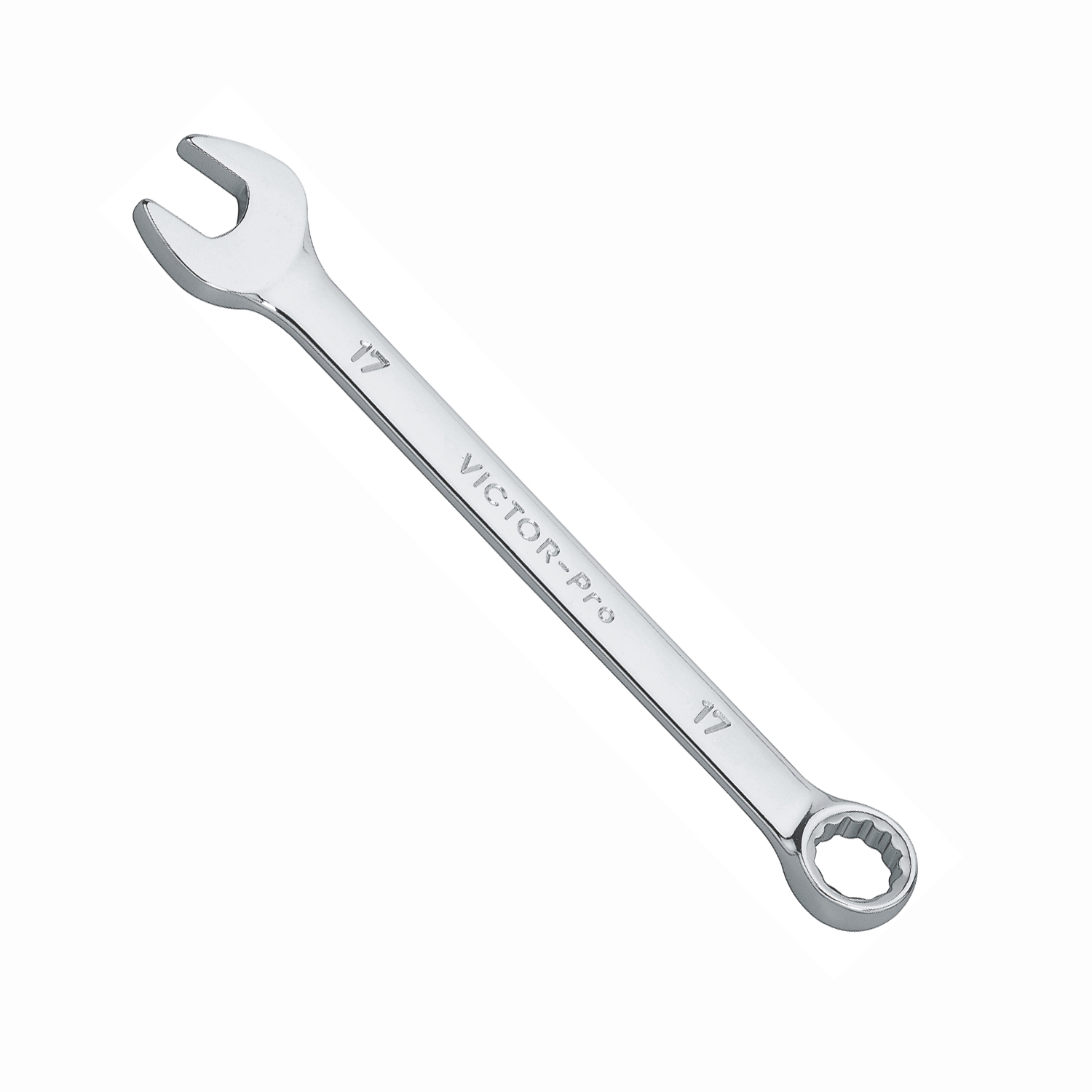

COMBINATION OPEN AND BOX SPANNER (LASER PRINTED)

Combination open And Box Spanner (Laser Printed)

SIZE (MM) LENGTH (MM) b1 b2 a1 a2 WEIGHT (GMS)
6 104 10 16.5 5.8 3.6 18
7 113 11.5 17.5 6.8 3.6 22
8 125 13.5 19.5 6.8 4.1 27
9 134 14.5 22.5 7.6 4.2 32
10 142 16.5 23.5 9 4.8 45
11 155 17.5 26.5 9.6 5 50
12 160 18 28.5 9.6 5 57
13 174 20.5 30.5 10.9 6 76
14 182 21.5 30.5 11 6 90
15 192 22.5 32.5 11 6 98
16 205 23.5 34 11.3 6.8 115
17 210 25.5 37.5 11.5 6.8 132
18 220 26.5 38.5 11.6 7.6 150
19 230 28.5 41 2 7.6 170
20 240 30 42 12.4 7.9 177
21 250 31.5 44 12.8 8.5 215
SIZE (MM) LENGTH (MM) b1 b2 a1 a2 WEIGHT (GMS)
22 260 33 46 12.8 8.5 248
23 270 35 46.5 12.8 8.5 250
24 282 36 49.5 13.8 10 310
25 290 37.5 51 13.8 10 340
26 300 39.5 56 15.3 10.5 420
27 310 39.5 56 15.3 10.5 435
28 320 41.5 57.5 15.3 10.5 450
29 320 41.5 57.5 15.3 10.5 460
30 330 43.5 59 17 11 490
32 364 46.5 63.5 17.8 11.2 590
36 385 53 71 20.4 12.2 800
38 395 55.5 74 21.1 12.8 880
41 440 60.5 79 22.4 14.2 1100
46 495 67.5 88 24.3 15 1730
50 535 72.5 96 25.5 15.8 2125
Code Sets 6 7 8 9 10 11 12 13 14 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 32
0001 6 Pcs Set X X X X X X
0002 8 Pcs Set X X X X X X X X
0003 12 Pcs Set X X X X X X X X X X X X
0004 25 Pcs Set X X X X X X X X X X X X X X X X X X X X X X X X
0005 26 Pcs Set X X X X X X X X X X X X X X X X X X X X X X X X X
