DIN 3118
Chrome Vanadium Steel

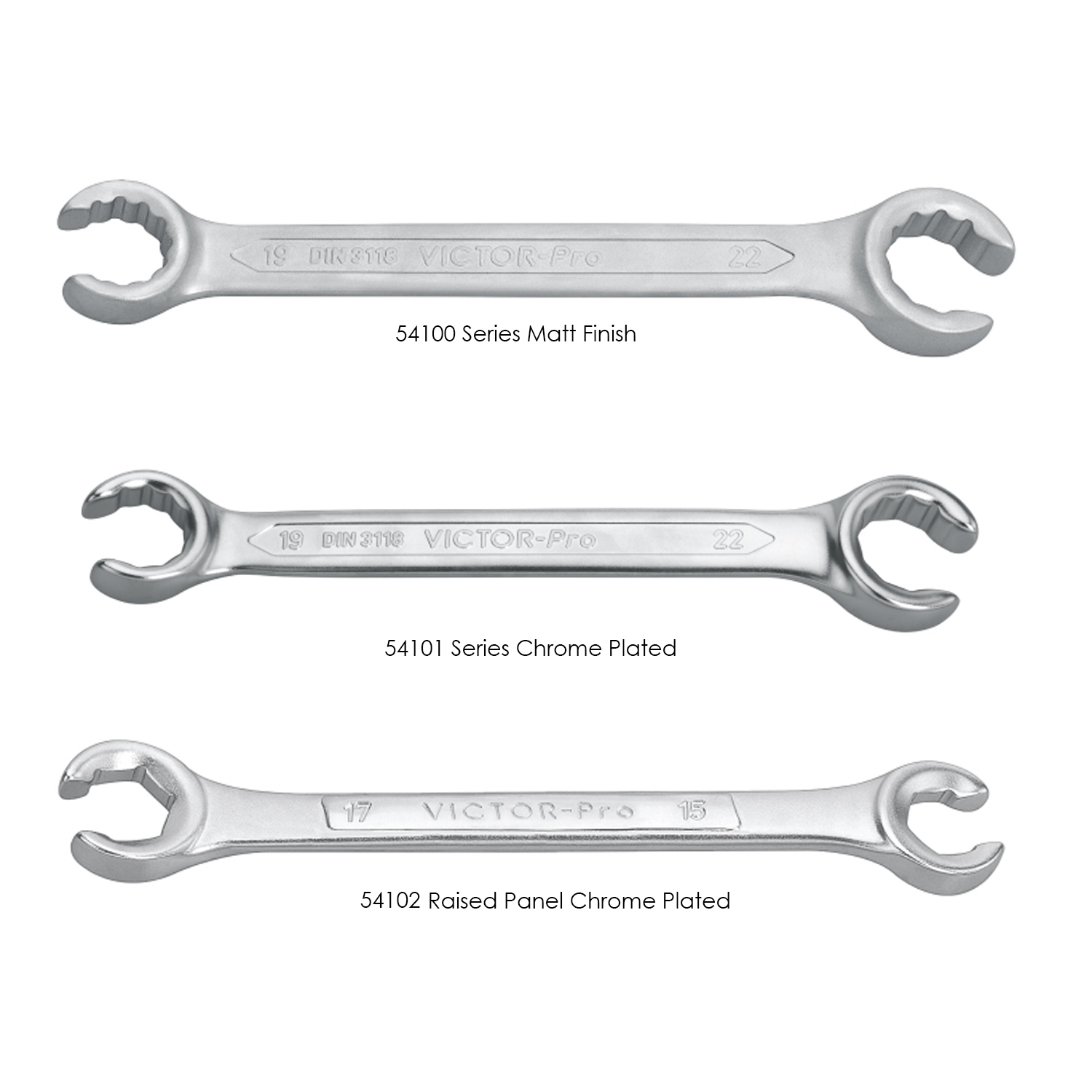

Finish: Chrome Plated / Matt Finish / Raised Panel Chrome Plated

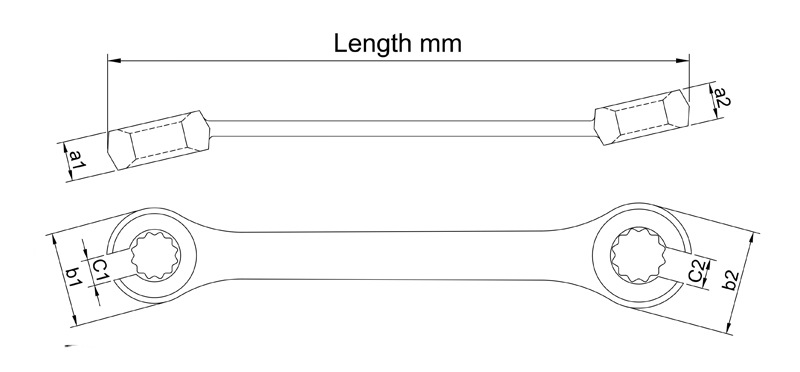

| SIZE (MM) | LENGTH (MM) | b1 | b2 | a1 | a2 | c1 | c2 | WEIGHT (GMS) |
| 8X10 | 143 | 18 | 20 | 7 | 8 | 6 | 7 | 48 |
| 9X11 | 152 | 19 | 22 | 8 | 9 | 7 | 8.5 | 58 |
| 10X11 | 152 | 20 | 22 | 8.5 | 9 | 7 | 8.5 | 50 |
| 10X12 | 152 | 20 | 24 | 8.5 | 9.5 | 7 | 9 | 52 |
| 11X12 | 172 | 22 | 24 | 9 | 9.5 | 8.5 | 9 | 85 |
| 11X13 | 172 | 22 | 26 | 9 | 10 | 8.5 | 10 | 88 |
| 12X13 | 172 | 24 | 26 | 9.5 | 10 | 9 | 10 | 90 |
| 12X14 | 172 | 24 | 28 | 9.5 | 11 | 9 | 11 | 94 |
| 13X14 | 170 | 26 | 28 | 10.5 | 11 | 10 | 11 | 96 |
| 13X15 | 170 | 26 | 29 | 10.5 | 11 | 10 | 11.5 | 98 |
| SIZE (MM) | LENGTH (MM) | b1 | b2 | a1 | a2 | c1 | c2 | WEIGHT (GMS) |
| 14X17 | 200 | 28 | 32 | 11 | 12 | 11 | 14 | 128 |
| 16X18 | 215 | 31 | 34 | 12.5 | 13.5 | 12 | 14 | 165 |
| 17X19 | 215 | 32 | 35 | 12.5 | 13.5 | 14 | 15 | 188 |
| 19X22 | 220 | 35 | 41 | 13.5 | 15.5 | 15 | 17 | 233 |
| 22X24 | 238 | 41 | 45 | 16 | 17 | 17 | 18 | 252 |
| 24X27 | 258 | 45 | 48 | 17 | 18 | 18 | 20 | 318 |
| 30X32 | 280 | 50 | 52 | 21 | 23 | 22 | 24 | 428 |
