We manufacture, design and specialized in a wide range of Hand Tools

Since 1954

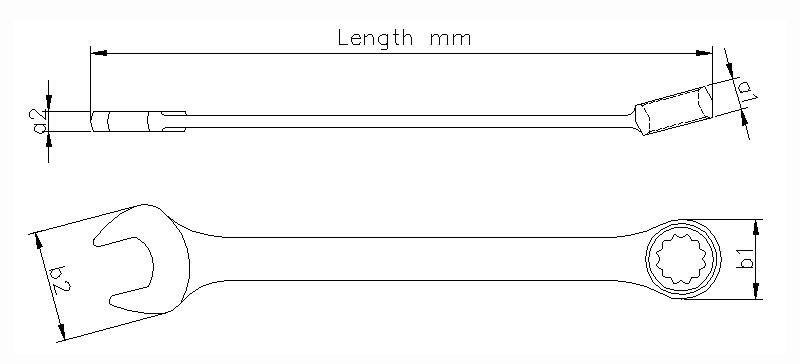

COMBINATION OPEN & BOX END SPANNER

Laser Printed or Embossed
DIN 3113A - ISO 3318 - ISO 1085
Chrome Vanadium Steel
Finish: Satin Finish / Fully Polish

6 104 10 16.5 5.8 3.6 18
7 113 11.5 17.5 6.8 3.6 22
8 125 13.5 19.5 6.8 4.1 27
9 134 14.5 22.5 7.6 4.2 32
10 142 16.5 23.5 9 4.8 45
11 155 17.5 26.5 9.6 5 50
12 160 18 28.5 9.6 5 57
13 174 20.5 30.5 10.9 6 76
14 182 21.5 30.5 11 6 90
15 192 22.5 32.5 11 6 98
16 205 23.5 34 11.3 6.8 115
17 210 25.5 37.5 11.5 6.8 132
18 220 26.5 38.5 11.6 7.6 150
19 230 28.5 41 12 7.6 170
20 240 30 42 12.4 7.9 177
21 250 31.5 44 12.8 8.5 215
22 260 33 46 12.8 8.5 248
23 270 35 46.5 12.8 8.5 250
24 282 36 49.5 13.8 10 310
25 290 37.5 51 13.8 10 340
26 300 39.5 56 15.3 10.5 420
27 310 39.5 56 15.3 10.5 435
28 320 41.5 57.5 15.3 10.5 450
29 320 41.5 57.5 15.3 10.5 460
30 330 43.5 59 17 11 490
32 364 46.5 63.5 17.8 11.2 590
33&34 367 48 66 17.8 11.2 635
35 &36 382 51 70 20.4 12.2 800
38 395 55.5 74 21.1 12.8 880
41 440 60.5 79 22.4 14.2 1100
46 495 67.5 88 24.3 15 1730
50 535 72.5 96 25.5 15.8 2125
55 600 107 78 25.5 18 2665
60 620 115 85 26.5 20 3250
65 640 125 95 28 21 4250
70 660 134 102 30 23 5240
